| OPTIZEN POP |
| UV/Vis spectrophotometer |
|
 |
|
OPTIZEN
series have been upgraded with unseen spectrophotometer till now in
this field. OUR new launching model is named as OPTIZEN POP. |
 |
 |
 |
 |
|
| |
| Features |
| |
- Emotional Design: Design term by Donald A. Norman
: Unique, defined crystal look: Selectable from our cover designs or your own design/logo
- Economical but rather powerful performance
: Rational and reasonable price
(7 connecting ports single beam spectrophotometer and embedded PC).
- Stability in measurement
: Auto blank measuring method, Sliding LC Mirror Changer, free voltage, temperature
cell
sensor and noise elimination method
- Versatility with customizing your needs.
: Education, institutions, factories, personnel and other uses.
- Windows CE operation: Standard storage memory 2GB (Option: 8GB)
Able to back up data at portable USB memory
Online networking available:
- Voice guide: Instruction given with voice guide
- larger display (specification: touch screen 7 Inches TFT LCD)
- Convenient printing
OPTIZEN POP don’t need exclusive printer, any USB printers that support PCL mode are available to use.
- For environments and green (save the earth)*2
:Saving electric power helps keeping green surround your environment.
OPTIZEN POP minimizes stand-by power consumption with motor driven.
If you use OPTIZEN POP 720 hours in a year, 19kg of Carbon dioxide can be reduced.
(When making 1KW of electricity power, 424g of Carbon dioxide is emitting)
- Quartz over-coating
:Designed to protect high-precision optical components from contaminants.
It greatly improves the lifespan of product.
- Free voltage
:Stability in analyzed value with an unstable situation in a separate transformer or
without power supply voltage stabilizer. It allows turning on D2 lamp unwavering to
analyze in ultraviolet ray range.
- Compact with good specification: 433(W) x 381(D) x 180mm (H) (8Kg)
- ABM
:Auto blank measuring method is to measure the reference sample automatically at
every measurement. It minimizes error that can occur so that stability in comparable
measurement can implement with double beam type spectrophotometer
- Noise elimination
:Analog filter eliminates noise that occurs when sensor changes intensity through
electric signal
|
|
| |
| OPTIZEN View (Built-in software) |
| |
|

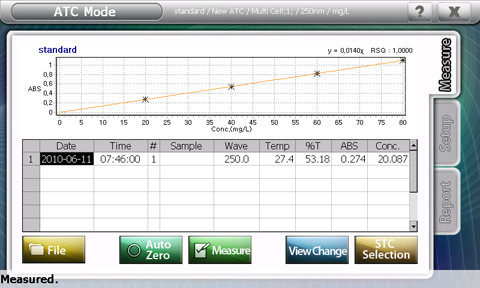

ATC mode
ABS/%T/Conc |
 |

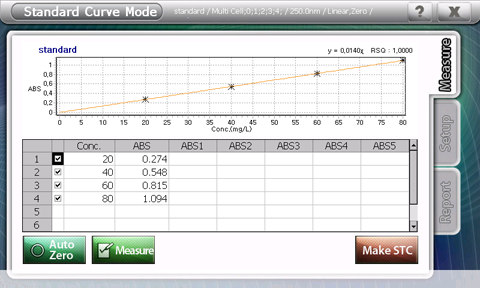

STC mode
Standard Curve Mode |
 |

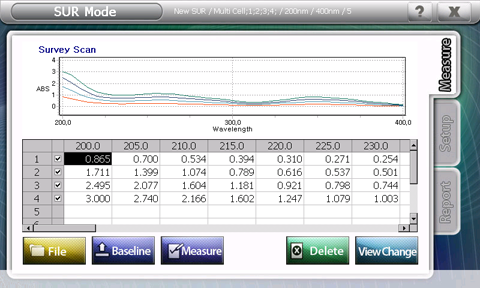

SUR mode
Survey Scan Mode |
 |

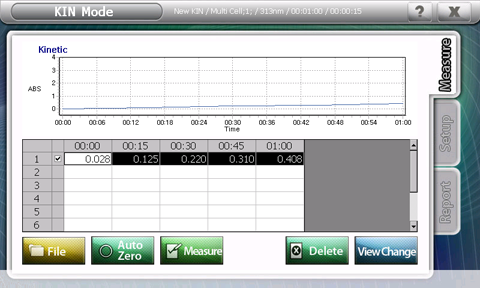

KIN mode
Kinetic Scan Mode |
|
| |
| Specifications |
| |
Optical System |
Single Beam Type |
| |
Spectral Band Pass Width |
< 1.8nm |
| |
Accuracy |
<± 0.5nm (at D₂ peak 656.1nm, 486.0nm) |
| |
Slew Rate |
About 7,800nm/min |
| |
Scanning Speed |
Max. 4,000nm/min |
| |
Range |
-3.0 ~ 3.0 ABS (Enable to Set Up) |
| |
Accuracy |
± 0.005 ABS (at 1.0 ABS) |
| |
Reproducibility |
± 0.003 ABS (at 1.0 ABS) |
| |
Stray Light |
< 0.05%T (220nm, 340nm) |
| |
Baseline Stability |
< ± 0.001 ABS/h (at 550nm) |
| |
Baseline Flatness |
< ± 0.002 ABS (200- 1100nm) |
| |
Monochomater |
Modified Czerny- Turner type with 1200 lines/mm blazed Grating |
| |
Light Source |
Tungsten-halogen & Deuterium Lamp |
| |
Lamp Change Wavelength |
340 - 410nm (Default 370nm), including Auto Position System |
| |
Standard Cell Holder |
Rotary type 8 position Multi Cell Holder |
| |
Interface Ports |
4 USB ports / 3 RS-323C ports |
| |
Power Requirement |
Free Voltage |
| |
Overall
Dimensions(mm) |
433(W) x 381(D) x 180(H) |
|
| |
|
|
