Easy performances in biochemistry analysis
DNA, RNA, and protein analyzer
1. No sample dilution
2. No other cuvettes
3. No cross contaminations
4. Good reproducibility
Due to the integrated beam deflection and the use of
fibre-optic cables it is possible to measure the sample directly on the
surface of the optical window. The cap with mirror provides a
welldefined optical light path and prevents the sample from drying up or
evaporated. Leads to much small volume to be analyzed.
The measurement remains reproducible because the sample
will not be enriched by evaporation of the solution. During filling and
cleaning stages, cell remaining in the photometer leads to continuously
identical position of the aperture in the light beam and no variation in
comparison to the reference measurement.
Hellma cell ( tray cell)
CAP
VOLUME
1mm cap
3ul to 5ul
0.2mm cap
0.7ul to 4ul
OPTIZEN View (Built-in software)

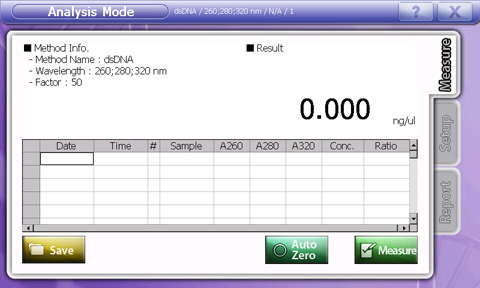

Nucleic Acid Analysis dsDNA/ssDNA/Oligo DNA/RNA

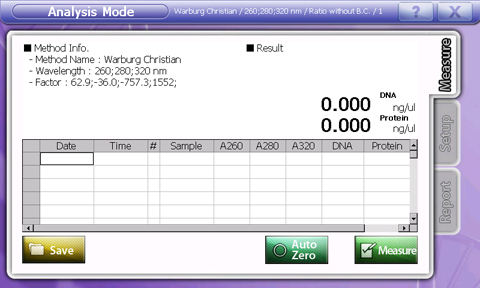

Warburg Christian
Kalb Bernlohr

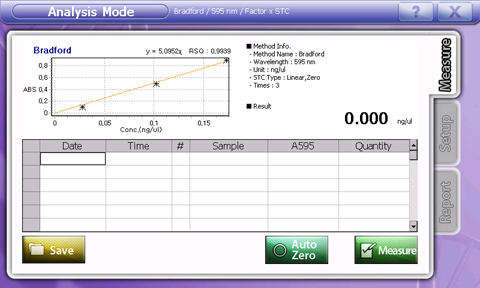

Protein Analysis Bradford Mode
Cell Density
Features with performance and reliability
- Nucleic acids analysis
- Determination of the incorporation frequency of fluorescent dye labels ( FOI )
- Protein analysis : A280, BCA, Bradfod, Lowry and etc.
- All UV/Visible range utilized analysis
- Labeling efficiency
- Enzyme activity and reaction rate
- Cell density
