Water quality analyzer

  OPTIZEN QX series are designed for water quality analysis to improving and simplifying analytical procedures for routine use.
OPTIZEN View (Built-in software)

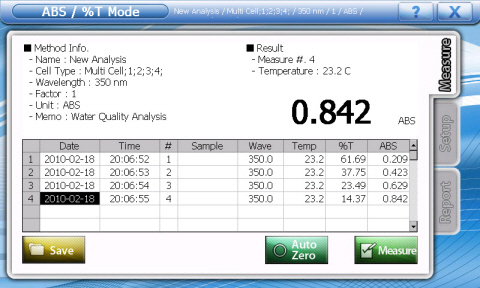

AT mode

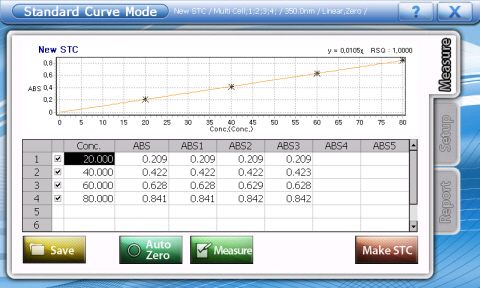

STC mode
Standard Curve Mode
SUR mode
Survey Scan Mode
Analysis mode

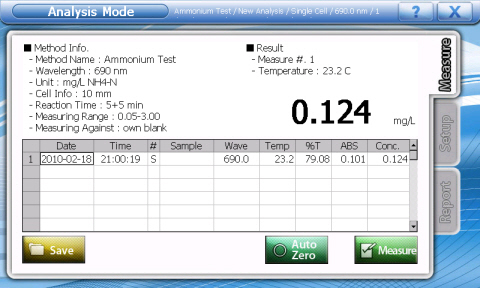

Merck Mode
Analysis mode

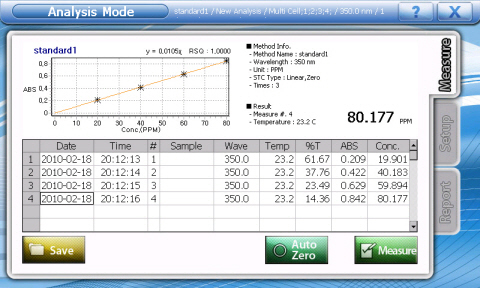

User Mode
MERCK reagent List
 NO. Parameter
1 Aluminium
2 Arsenic
3 Boron
4 Bromine
5 Chiorine diocide(CIO2)
6 Chiorine Free
7 Chiorine Total
8 Calcium
 NO. Parameter
9 Chromate
10 Cobalt
11 COD
12 Cyanide
13 Fluoride
14 Manganese
15 Nitrite(NO2)
16 Phenol
 NO. Parameter
17 Phosphate
18 Sulfide
19 Silcon
20 Silver
21 Total Nitrogen
22 Total Phosphate
23 Zinc

Economical but rather powerful performance
- Price in rational and reasonable range (7 connecting ports single beam spectrophotometer and embedded PC).

Stability in measurement
- Auto blank measuring method, free voltage, temperature cell sensor and noise elimination method

Versatility with customizing your needs.
- Small semiconductor education, institution, making factories, plastic goods factories, personnel, and other use.

Window CE operation: Standard storage memory 2GB (Option: 8GB)
- Back up data to connect portable USB memory
- Online networking available:

Voice guide:  Instruction given with voice guide

Larger display (specification: touch screen 7 Inches TFT LCD)
- Printer PCL mode is supported. USB ports for any color printer use

For environments and green (save the earth) *2
- Saving electric power helps keeping green surround your environment.
- Selecting lamp usage such as using only tungsten lamp allows to keeping power consumption
by not using D2 Lamp.
- Optizen POP minimizes stand-by power consumption with motor driven, so that you could
reduce 19kg Carbon dioxide (CO2) per year to save the earth. (1 year: 720hours usage,
electricity power 1Kw =424g CO2)

Quartz over-coating
*Designed to protect high-precision optical components from contaminants.
Quartz coating to parts greatly improves lifespan of the product.

Compact with good specification: 433X381X180 (8Kg)

- Auto blank measuring method is to measure the reference sample automatically at every measurement to minimize errors that can occur so that stability in comparable measurements can implement with double beam type spectrophotometer.

*Free voltage
- Stability in analyzed value with an unstable situation in a separate transformer or without power supply voltage stabilizer.  It allows turning on D2 lamp unwavering to analyze in ultraviolet ray range.

*Noise elimination
- Analog filter eliminates noise that occurs when sensor changes intensity through electric signal

  Optical System Single Beam Type
  Spectral Band Pass Width < 1.8nm
  Range 190 ~ 1100nm
  Accuracy <± 0.5nm (at D₂ peak 656.1nm, 486.0nm)
  Reproducibility <± 0.1nm
  Setting ≤ 0.1nm
  Slew Rate About 7,800nm/min
  Scanning Speed Max. 4,000nm/min
  Range -3.0 ~ 3.0 ABS (Enable to Set Up)
  Accuracy ± 0.005 ABS (at 1.0 ABS)
  Reproducibility ± 0.003 ABS (at 1.0 ABS)
  Stray Light < 0.05%T (220nm, 340nm)
  Baseline Stability < ± 0.001 ABS/h (at 550nm)
  Baseline Flatness < ± 0.002 ABS (200- 1100nm)
  Monochomater Modified Czerny- Turner type with 1200 lines/mm blazed Grating
  Light Source Tungsten-halogen & Deuterium Lamp
  Lamp Change Wavelength 340 - 410nm (Default 370nm), including Auto Position System
  Standard Cell Holder Rotary type 8 position Multi Cell Holder
  Interface Ports 4 USB ports / 3 RS-323C ports
  Power Requirement Free Voltage
  Overall Dimensions(mm) 433(W) x 381(D) x 180(H)
  Weight 8kg
