An inverted microscope spec sheet covers optics, illumination, stage/condenser, camera compatibility, and mechanical design. Many buyers skim past terms like numerical aperture (NA), working distance, or turret configuration without understanding how they affect real-world performance. That gap leads to equipment that looks impressive on paper but underperforms on the bench.
This guide breaks down every major specification category on an inverted microscope spec sheet, and shows you how to match those specs to your actual application, whether that's live-cell imaging, diagnostics, or industrial inspection.
Key Takeaways
- Evaluate five core spec areas: optics, illumination, stage/condenser, camera compatibility, and mechanical design
- Match objective specs (magnification, NA, working distance) to resolution needs and sample type
- Prioritize application fit over the highest magnification number on the sheet
- Factor AI software specs on platforms like Laxco’s Accuva LEAP (upgradable to LEAP AI, with brightfield/phase/polarized/fluorescence capability) in with traditional optical specs
- Use the full sheet to shortlist systems that fit your workflow—not just peak magnification
What Is an Inverted Microscope? (Quick Primer)
An inverted microscope flips the traditional layout: the objective sits below the stage, and the light source and condenser sit above it. This lets researchers observe samples in Petri dishes, culture flasks, and multi-well plates from underneath, without disturbing the liquid medium on top.
This layout supports three core use cases:
- Live-cell imaging, where cells settle at the vessel bottom and the objective reaches them from below
- Larger vessels such as flasks and multi-well plates that will not fit under a standard upright stage
- Hands-on work from above—pipetting, media exchange, or sample manipulation—while imaging continues
Compare that to an upright microscope, where the objective sits above the sample and light travels up through it. Because inverted systems image through the bottom of a vessel, their objectives need longer working distances and an oblique light path to reach the eyepiece. That path change is why working distance, objective design, and illumination specs on an inverted microscope spec sheet diverge from upright models.
Core Optical Specifications to Evaluate
When you compare inverted microscope specs, five optical numbers do most of the work: magnification, numerical aperture (NA), working distance, illumination/condenser setup, and eyepiece field of view. Software compatibility now sits beside those optics on many sheets.
Magnification and Numerical Aperture
Magnification tells you how much bigger the image looks. NA tells you how much detail you'll actually resolve.
NA is calculated as NA = n × sin(α), where n is the refractive index of the medium and α is the half-angle of light the lens collects. A high-magnification objective with low NA still gives low resolution.
Compare NA within the same magnification bracket, not magnification alone. Objective barrels typically print both numbers—for example, "40X / 0.65 NA."

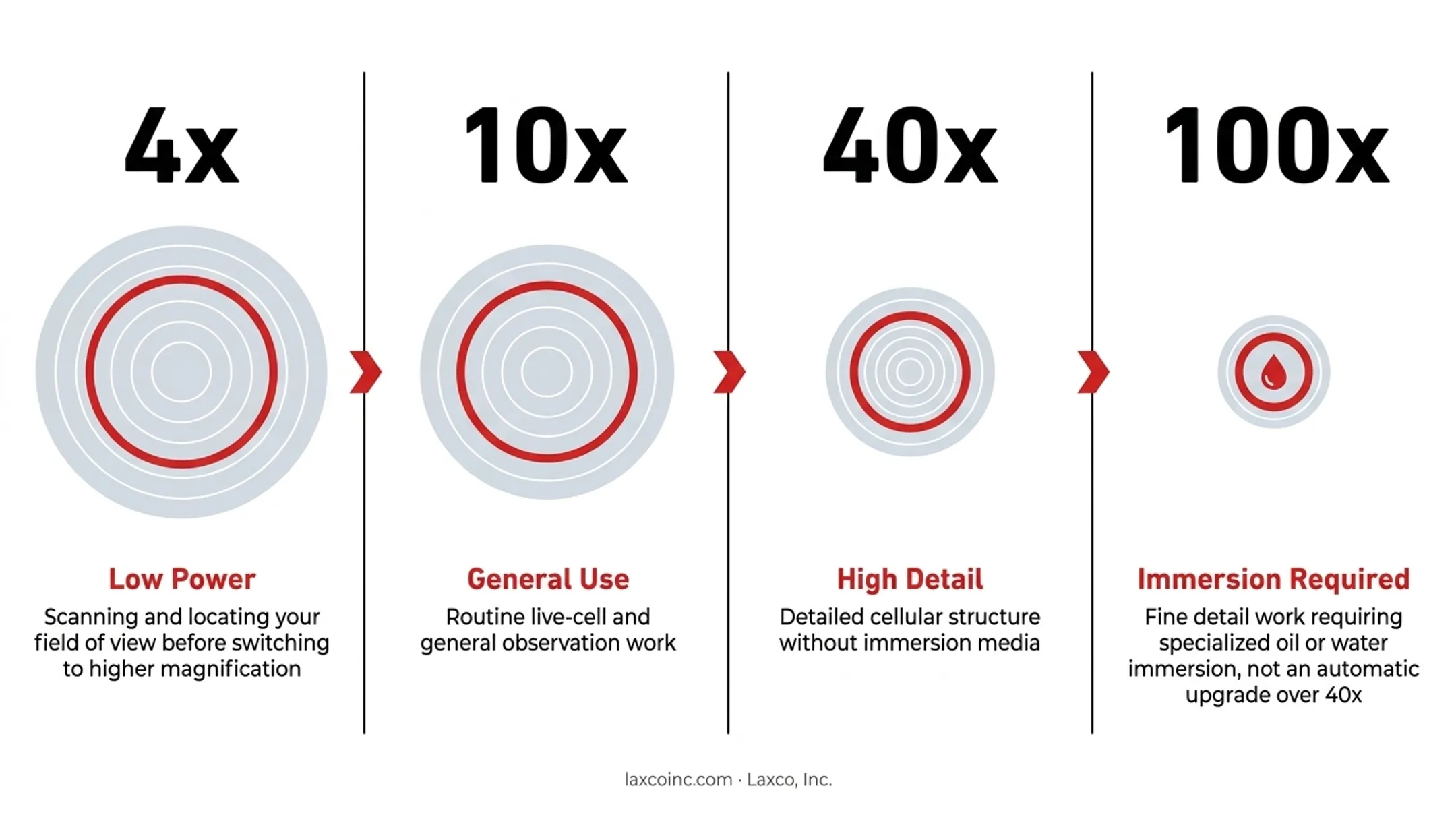

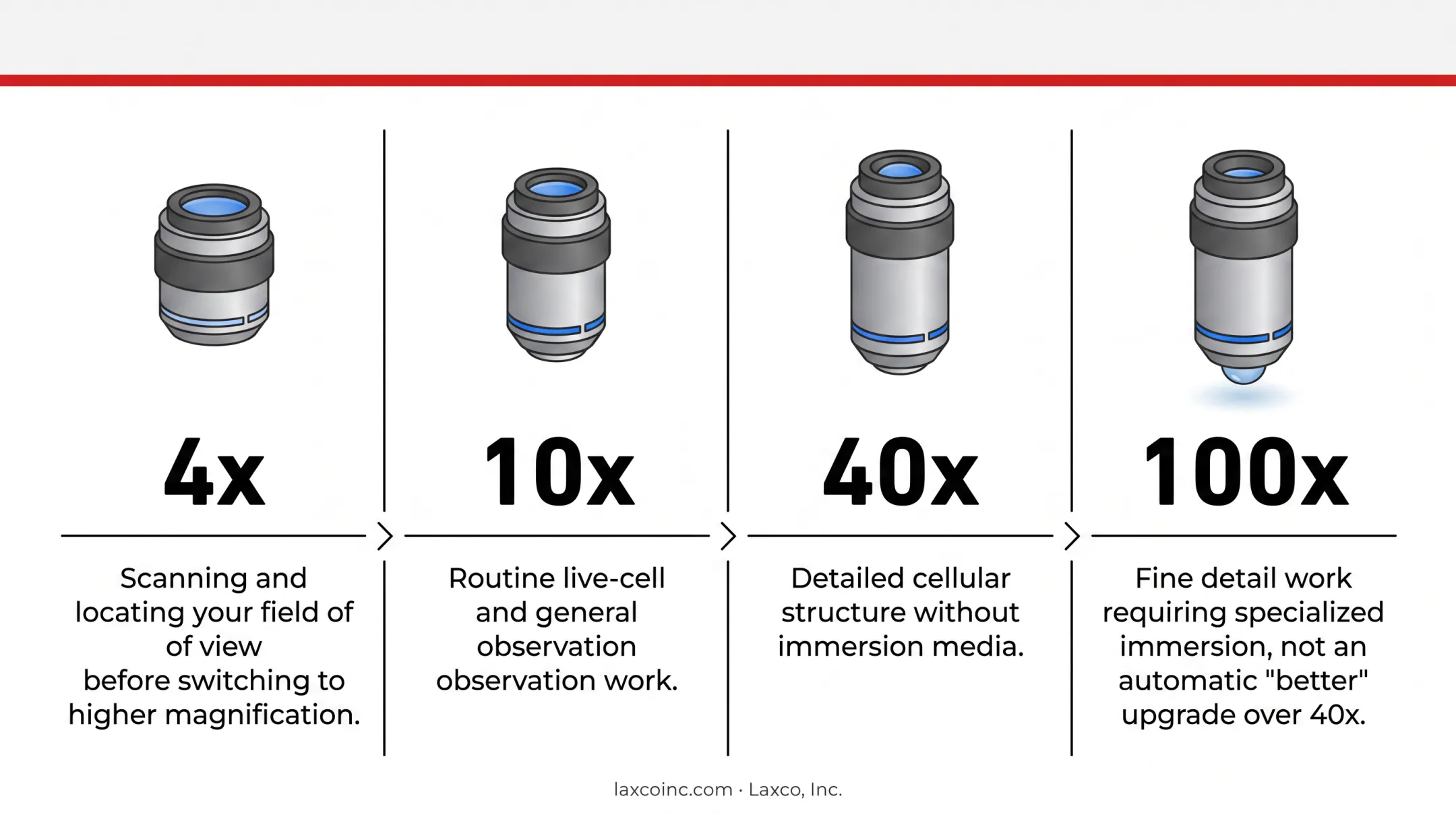

What 4x, 10x, 40x, and 100x Objectives Are Actually For
- 4x/low power — scanning and locating your field of view before switching to higher magnification
- 10x — routine live-cell and general observation work
- 40x — detailed cellular structure without immersion media
- 100x (oil/water immersion) — fine detail work requiring specialized immersion, not an automatic "better" upgrade over 40x
Working Distance
Working distance is the gap between the objective tip and the focused specimen surface. Inverted microscopes need long-working-distance objectives because they focus through the plastic bottom of a flask or well plate, not through a thin coverslip.
Generally, resolution and working distance trade off. More clearance usually means less resolving power at that magnification.

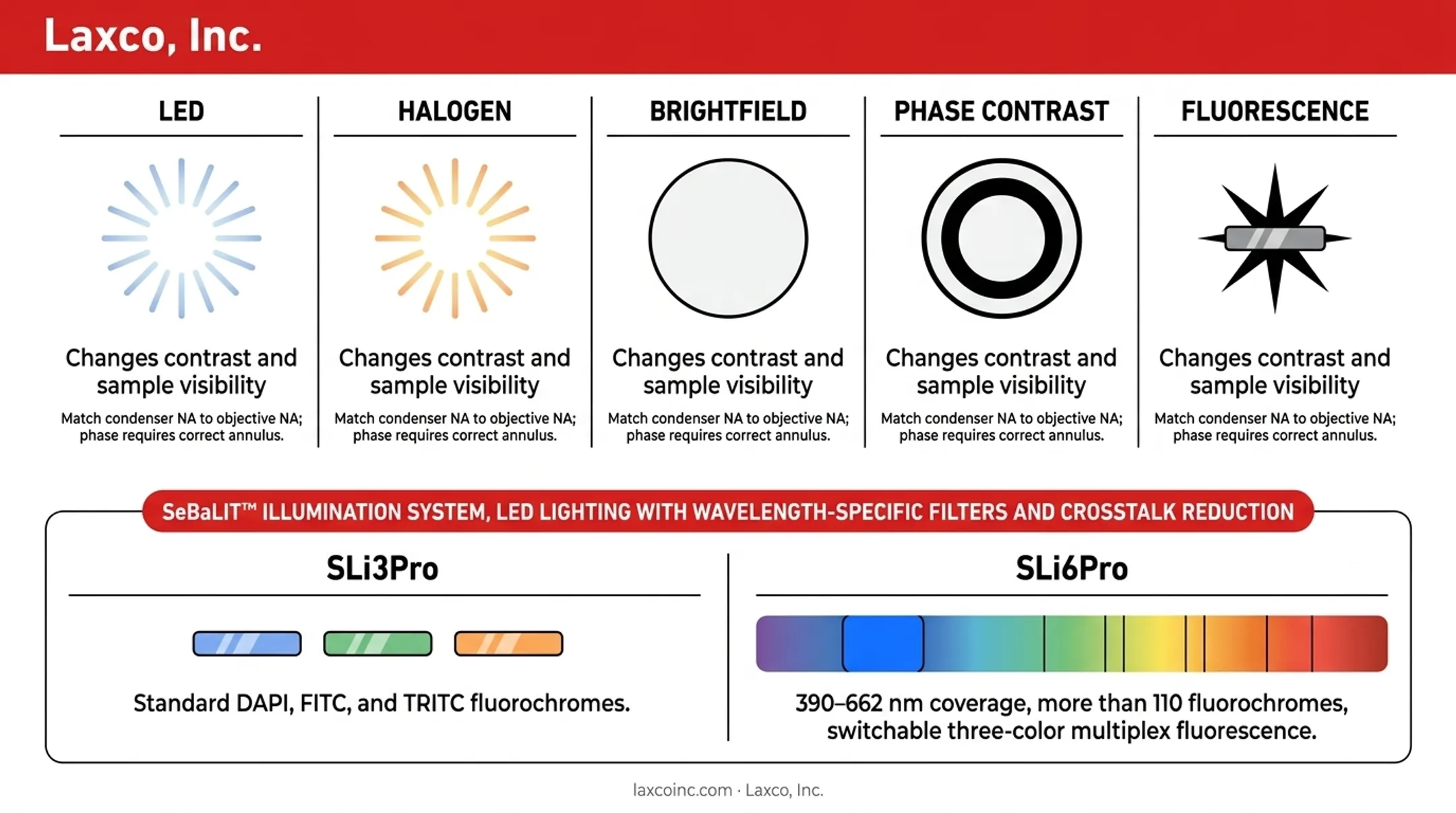

Illumination and Condenser Type
LED versus halogen, and brightfield versus phase contrast versus fluorescence, each change contrast and sample visibility. Match the condenser to the technique as well—phase needs the correct annulus, and condenser NA should support the objective NA you plan to use.

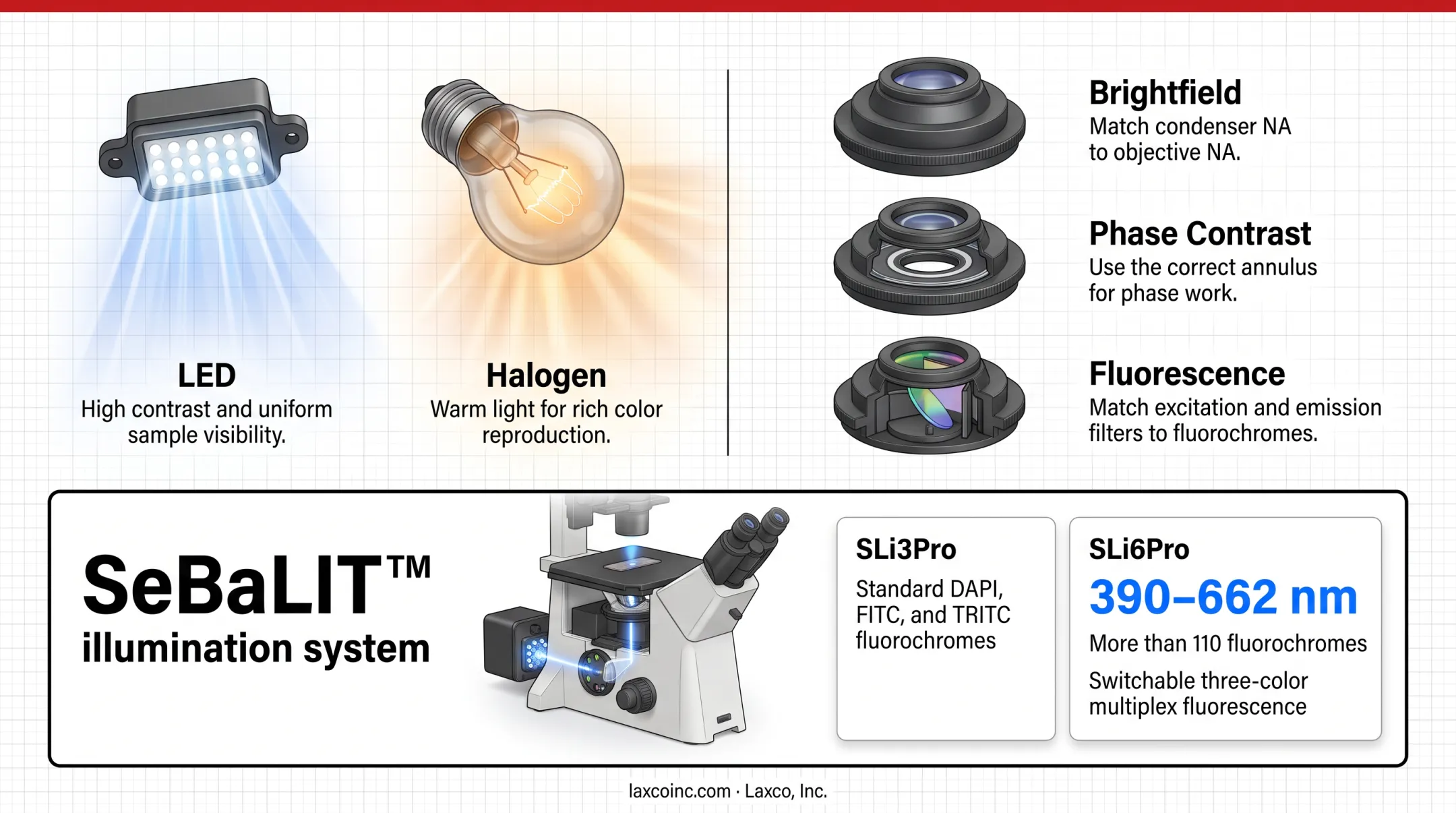

Laxco's patented SeBaLIT™ illumination system, used on the SLi3Pro and SLi6Pro inverted models, pairs LED lighting with wavelength-specific filters and crosstalk reduction:
- SLi3Pro — standard DAPI, FITC, and TRITC fluorochromes
- SLi6Pro — 390–662 nm coverage, more than 110 fluorochromes, switchable three-color multiplex fluorescence
Eyepiece Field Number and Total Magnification
Total magnification is objective magnification × eyepiece magnification. A 40x objective with a 10x eyepiece gives 400x total.
The eyepiece field number sets how much of that image you see at once. A higher field number means a wider field of view at the same magnification—useful when you are scanning wells or tracking cells across a larger area.
Software Is Now a Spec Category
Modern spec sheets list AI and software compatibility alongside optics. Laxco's Accuva LEAP platform pairs its optics with Media Cybernetics' Image-Pro AI software for segmentation, measurement, and reporting in the same imaging workflow—so treat analysis tools as part of the optical buy, not an afterthought.
Mechanical and Structural Specifications
Stage and Turret Configuration
Stages come in a few types:
- Plain/fixed stage — basic platform, no built-in X-Y movement
- Mechanical stage — adds controlled X-Y translation, useful for scanning across wells
- Motorized stage — automated positioning for repeatable, multi-point imaging
Turret ("nosepiece") configurations describe how many objectives can be mounted at once. Laxco's Accuva LEAP includes a motorized six-position objective turret and a separate motorized fluorescence cube turret that holds up to three filter cubes.
Focus System Precision
Focus specs aren't standardized across brands. Some list fine travel per knob rotation; others list minimum motorized increments in micrometers.
Before you compare sheets, confirm which number you're reading—these measure different things:
- Fine travel per rotation — how far the stage moves with one full turn of the fine-focus knob (e.g., 0.2 mm/rotation)
- Minimum motorized increment — smallest step the focus drive can make (e.g., 0.01 μm)

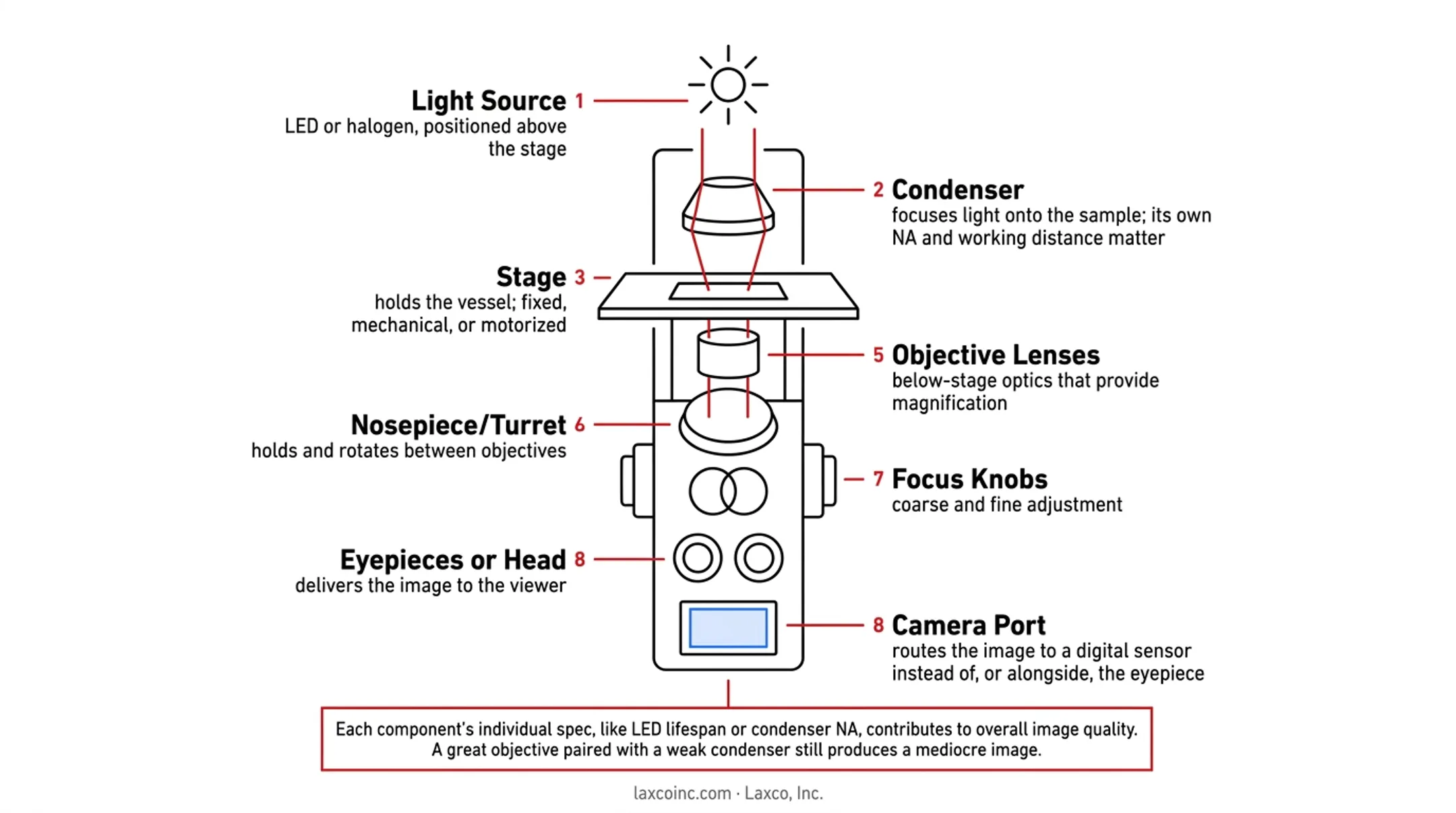

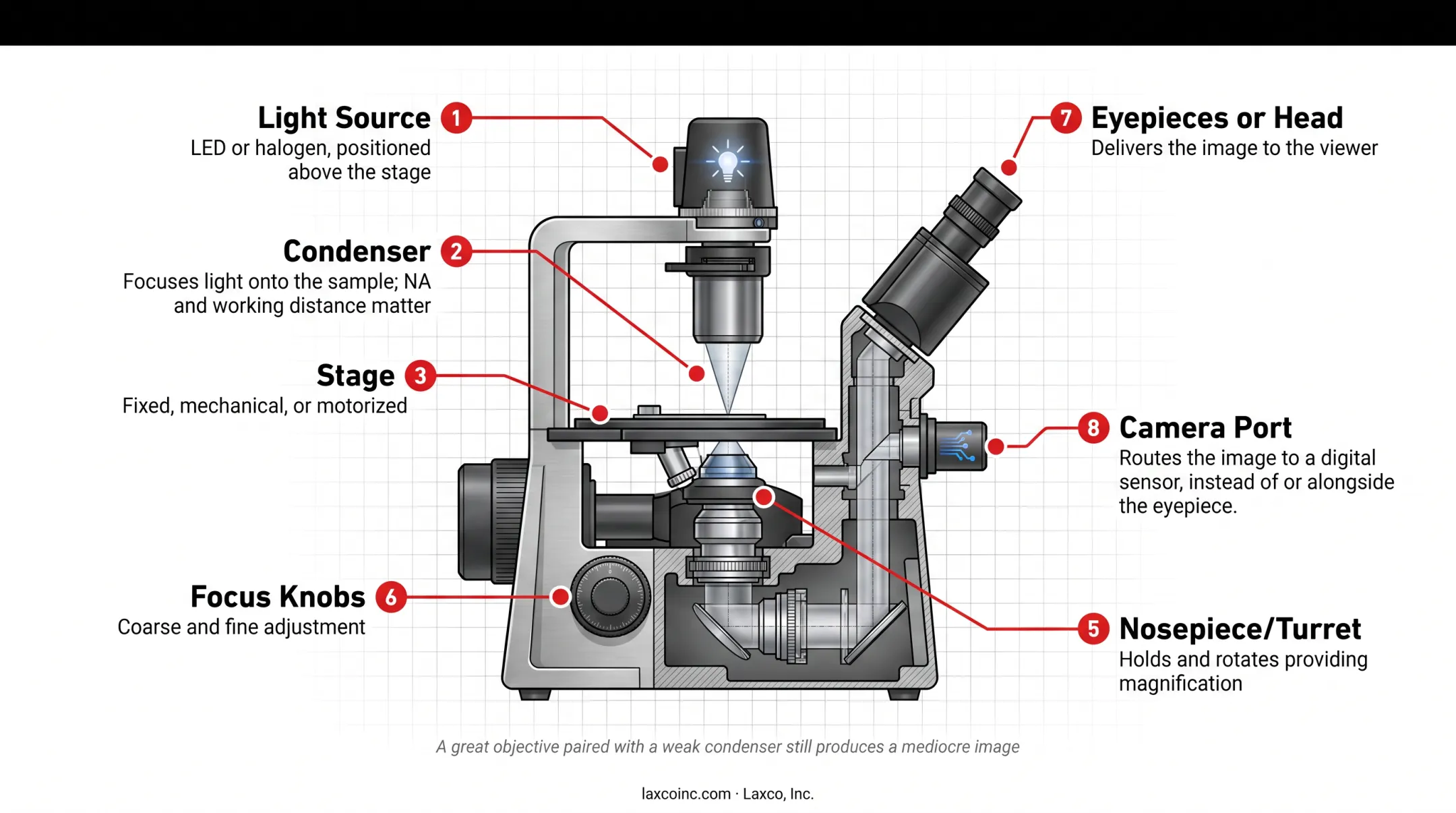

Main Components of an Inverted Microscope
Every inverted microscope, regardless of brand, shares the same core components:
- Light source — LED or halogen, positioned above the stage
- Condenser — focuses light onto the sample; its own NA and working distance matter
- Stage — holds the vessel; fixed, mechanical, or motorized
- Objective lenses — below-stage optics that provide magnification
- Nosepiece/turret — holds and rotates between objectives
- Focus knobs — coarse and fine adjustment
- Eyepieces or head — delivers the image to the viewer
- Camera port — routes the image to a digital sensor instead of, or alongside, the eyepiece
Each component's individual spec, like LED lifespan or condenser NA, contributes to overall image quality. A great objective paired with a weak condenser still produces a mediocre image.
Advantages Reflected in Specification Choices
The spec choices on an inverted microscope aren't arbitrary. They translate directly into practical lab benefits:
- Long working distance objectives let you image through thick flask bottoms without repositioning samples
- Open stage design gives you room to pipette, add reagents, or exchange media mid-observation—a core reason labs choose inverted setups.
- Low stage height reduces repetitive strain during long seated tissue-culture sessions
- Below-stage optics keep the sample surface untouched and clear for real-time manipulation
These details rarely dominate a spec sheet, yet they often decide how usable the microscope is day to day.
How to Match Specifications to Your Application
Different applications stress different parts of an inverted microscope. Use the priorities below as a shortlist when you compare systems.

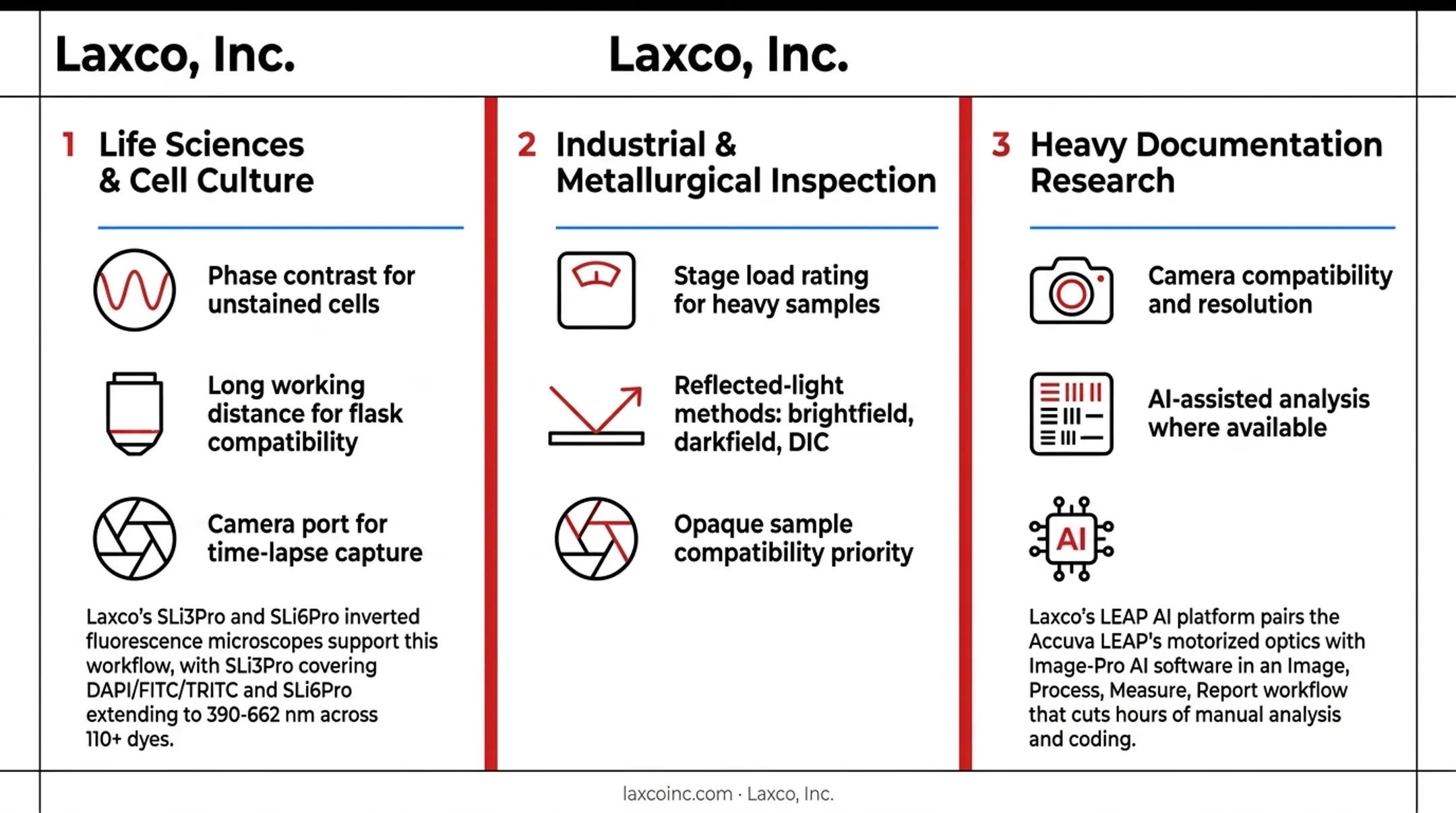

| Application | Priority specs |
|---|---|
| Life sciences/cell culture | Phase contrast, long working distance, camera port |
| Industrial/metallurgical inspection | Stage load capacity, reflected light options, depth of field |
| Documentation-heavy research | Camera resolution, AI-assisted analysis, fluorescence turret capacity |
Life sciences and cell culture work needs phase contrast for viewing unstained cells, long working distance objectives for flask compatibility, and a camera port built for time-lapse capture. Laxco's SLi3Pro and SLi6Pro inverted fluorescence microscopes are designed for this workflow, with SLi3Pro supporting DAPI/FITC/TRITC and SLi6Pro extending to a 390-662 nm range across 110+ dyes.
Industrial and metallurgical inspection flips the priority list. These systems image opaque, heavy samples, so stage load rating and reflected-light methods (brightfield, darkfield, DIC) matter more than working distance.
Research requiring heavy documentation should prioritize camera compatibility and resolution, plus AI-assisted analysis where available. Laxco's LEAP AI platform pairs the Accuva LEAP's motorized optics with Image-Pro AI software in an Image, Process, Measure, Report workflow that cuts hours of manual analysis and coding.
Frequently Asked Questions
What is the purpose of an inverted microscope?
An inverted microscope is built for live-cell observation through the bottom of culture vessels like flasks and multi-well plates. That setup lets you monitor dynamic biological processes in real time without disturbing samples from above.
What are the advantages of using an inverted microscope?
Key advantages include open-stage accessibility for pipetting and media exchange during observation, ergonomic benefits from a lower stage height, and long working distance objectives that accommodate thick culture vessels.
What are the 4x, 10x, 40x, and 100x objective lenses used for?
4x is for scanning and locating your field of view. 10x handles routine cell observation. 40x reveals detailed cellular structure. 100x, typically oil-immersion, is reserved for fine detail work.
What are the main components of an inverted microscope?
The main components are the light source, condenser, stage, objective lenses, nosepiece/turret, focus knobs, and eyepieces or camera port.
How do I know which inverted microscope specifications I actually need?
Start by defining your sample type and application, whether that's live-cell imaging, diagnostics, or industrial inspection. Then match NA, working distance, and illumination specs to that specific use case rather than chasing the highest numbers.
Can I add a camera or AI software to an existing inverted microscope?
Many inverted systems support camera port upgrades and digital imaging add-ons. Laxco's SLiPro series is field-upgradeable to digital imaging, and the Accuva LEAP platform integrates directly with Image-Pro AI software for a combined hardware/software upgrade path.
